Unlocking the Power of the Fiber Laser Lens: Precision Starts Here

This fiber laser lens may be small in size, but its role is monumental. It's the silent partner in your workshop, responsible for shaping and directing the laser beam with surgical precision. If you’re not paying close attention to this critical component, you're probably leaving quality—and profit—on the table.

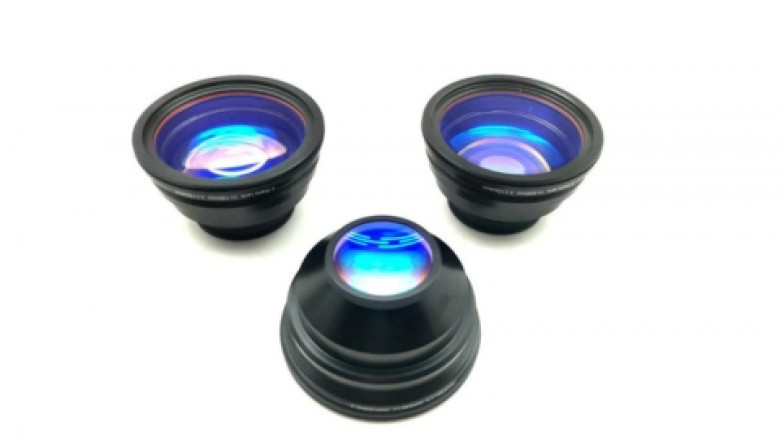

What Is a Fiber Laser Lens?

Let’s start with the basics. A fiber laser lens is a specially designed optical lens that focuses the laser beam generated by a fiber laser source. Unlike traditional CO2 laser systems, where the beam travels through mirrors and tubes, fiber lasers rely on fiber optics to transmit their energy. That energy, once it reaches the end of the fiber, is directed through the fiber laser lens to a specific focal point where the material gets cut, marked, or engraved.

The exact type of fiber laser lens used depends on your application. For instance:

• F-theta scanning lenses are used in marking systems.

• Collimating lenses and focusing lenses are found in cutting and welding heads.

• Some systems include protective lenses, which act as a shield to the focusing lens from debris and back-reflections.

Regardless of the type, the fiber laser lens must meet strict optical tolerances to ensure consistent energy delivery and avoid beam distortion.

Why Is the Lens So Crucial?

Precision machining is not forgiving. A small misalignment or defect in the fiber laser lens can result in poor focus, reduced power density, and ultimately—flawed products. When your beam is not correctly focused, you’ll experience incomplete cuts, excessive burrs, wider kerfs, and reduced marking clarity. Over time, this not only affects product quality but also increases machine downtime and operational costs.

But the magic of the fiber laser lens lies in its ability to turn raw energy into a refined tool. It doesn’t just concentrate the beam—it sculpts it. A high-quality lens will manage beam diameter, focus spot size, and working distance to match the specific requirements of your material and application.

Material Matters: What Are Fiber Laser Lenses Made Of?

Not all lenses are created equal. The best fiber laser lenses are made from materials that can withstand high power densities and thermal loads. Here are some of the commonly used materials:

• Fused Silica: Known for its excellent thermal stability and transmission in the infrared spectrum. It’s commonly used in high-power applications.

• ZnSe (Zinc Selenide): More common in CO2 lasers, but sometimes used in hybrid systems.

• Quartz: Offers excellent clarity and durability.

High-end lenses are also coated with anti-reflective (AR) layers to improve transmission and reduce power loss. These coatings are engineered specifically for the laser’s wavelength—usually around 1064 nm for most fiber lasers.

Cleaning and Maintenance: A Hidden Key to Longevity

Just like the lens on a camera, your fiber laser lens must remain clean to function properly. Microscopic debris, dust, or oil smudges can scatter the laser beam, reduce performance, or even damage the lens surface permanently. This can lead to costly replacements and lost time.

Proper cleaning involves:

• Using optical-grade lens cleaning wipes or swabs

• Applying specialized lens cleaning solutions

• Avoiding direct contact with the lens surface unless necessary

• Regular inspection, especially in high-volume operations

Ignoring maintenance might not show effects immediately, but over time, even minor contaminants can lead to a drop in cutting speed and accuracy.

Replacement Timing: Don’t Wait Too Long

Another tricky part of working with fiber laser lenses is knowing when to replace them. Unlike a bulb or motor that suddenly stops working, a fiber laser lens degrades subtly. You might notice:

• A drop in beam focus or sharpness

• Slower cutting speeds despite optimal settings

• Discoloration or haziness on the lens surface

• Increased sparks, smoke, or dross on cuts

Many operators only change their lenses when disaster strikes—but by then, the damage is already done. Implementing a lens replacement schedule can prevent sudden failures and keep your operations consistent.

Application-Specific Lens Choices

Whether you’re in automotive manufacturing, jewelry design, aerospace, or signage, there’s a specific type of fiber laser lens optimized for your workflow.

• For engraving and marking, a short focal length F-theta lens is ideal for fine details and small characters.

• For cutting thick metals, a longer focal length focusing lens helps deliver a tight, powerful beam to penetrate deep layers.

• In welding applications, the lens is selected based on the desired penetration depth and seam width.

Choosing the right fiber laser lens is not just about compatibility—it’s about optimization. When the lens matches the material and task, you maximize efficiency and reduce the chance of errors.

Cost vs. Quality: A Smart Investment

Some might be tempted to save a few bucks with low-cost lenses. However, a poorly made lens can be more expensive in the long run due to:

• Lower energy transmission rates

• Higher susceptibility to damage

• Inconsistent focus and alignment

• More frequent replacements

On the other hand, investing in a high-quality fiber laser lens from a reputable manufacturer can offer thousands of hours of reliable performance. You’ll not only improve output quality but also reduce waste and machine wear.

Choosing a Trusted Supplier

The laser equipment market is full of options, but when it comes to fiber laser lenses, not every vendor is equal. Look for suppliers who:

• Offer wavelength-specific lenses

• Provide lens performance data sheets

• Include AR coatings suitable for your laser’s power level

• Have customer support for troubleshooting and compatibility questions

Brands like Raytools, IPG, and WSX are known for producing reliable lens systems compatible with most fiber laser cutting and welding machines.

Storage and Handling: Treat It Like Glassware

Even the best lens can be ruined if mishandled. Always store fiber laser lenses in padded, dust-free containers. Avoid exposing them to direct sunlight or fluctuating temperatures. When handling, use gloves or finger cots to prevent oils from your skin from affecting the optics.

The Future of Fiber Laser Lenses

As fiber laser systems evolve to include higher power levels, automation, and AI-driven optimization, lens technology is also advancing. Today’s lenses are becoming more durable, efficient, and even self-monitoring. Some systems are integrating sensors to detect lens contamination in real time and alert operators before issues occur.

This shift not only protects your investment but also keeps your business ahead of the competition. As automation grows, the role of the fiber laser lens will become even more critical in ensuring every cut, mark, and weld meets the required standard.

Final Thoughts

The fiber laser lens is far more than a simple optical component—it’s the heart of your laser system’s accuracy. Every beam that cuts, marks, or engraves your materials is shaped and focused by this unsung hero. From choosing the right material and focal length to proper handling and timely replacements, attention to your fiber laser lens can significantly impact your workflow quality and machine longevity.

If you’re aiming for razor-sharp results, flawless engraving, or efficient metal cutting, don’t overlook the lens. Invest wisely, maintain consistently, and you’ll unleash the full potential of your fiber laser system—one beam at a time.
